SwitchBot

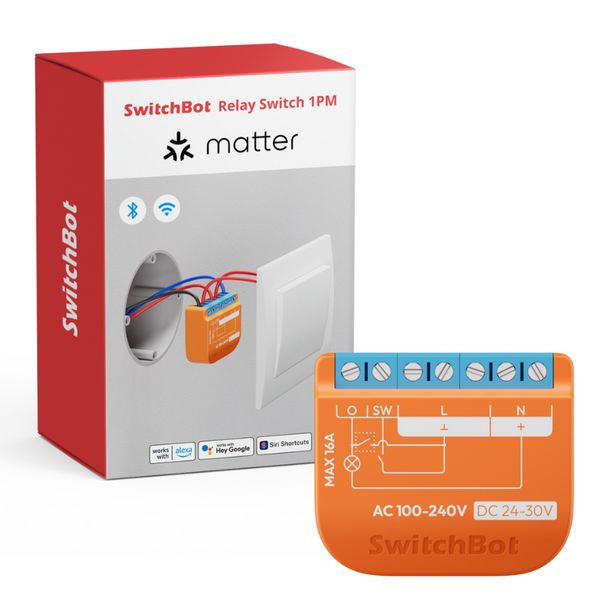

SwitchBot Relay Switch 1PM
$30.00
$39.00
or $7.50 x 4 with
or $10.00 x 3 with
{"id":7122310201429,"title":"SwitchBot Relay Switch 1PM","handle":"switchbot-relay-switch-1pm","description":"# Product Specifications\n\n\u003ch4\u003eDimensions (mm)\u003c\/h4\u003e\n\u003cp\u003e42 x 36 x 16±0.5 mm (1.6 x 1.4 x 0.6±0.02 in.)\u003c\/p\u003e\n\n\u003ch4\u003eProduct Weight\u003c\/h4\u003e\n\u003cp\u003e27 g (0.9 oz.)\u003c\/p\u003e\n\n\u003ch4\u003eMaterials\u003c\/h4\u003e\n\u003cp\u003ePC\u003c\/p\u003e\n\n\u003ch4\u003eParameter Information\u003c\/h4\u003e\n\u003cul\u003e\n \u003cli\u003e\n\u003cstrong\u003ePower Supply:\u003c\/strong\u003e AC Input: 100-240V 50\/60Hz\u003c\/li\u003e\n \u003cli\u003eDC Input: 24V-48V, 12V\u003c\/li\u003e\n \u003cli\u003e\n\u003cstrong\u003eOutput Current:\u003c\/strong\u003e Max AC Output Current: 16 A\u003c\/li\u003e\n \u003cli\u003eMax DC Output Current: 10 A\u003c\/li\u003e\n\u003c\/ul\u003e\n\n\u003ch4\u003ePacking List\u003c\/h4\u003e\n\u003cul\u003e\n \u003cli\u003e1 * Product\u003c\/li\u003e\n \u003cli\u003e1 * Manual\u003c\/li\u003e\n \u003cli\u003e1 * Warranty Card\u003c\/li\u003e\n\u003c\/ul\u003e\n\n\u003ch4\u003eConnection Method\u003c\/h4\u003e\n\u003cp\u003eWi-Fi+BLE\u003c\/p\u003e\n\n\u003ch4\u003eInstallation Method\u003c\/h4\u003e\n\u003cp\u003eEmbedded\u003c\/p\u003e\n\n\u003ch4\u003eBluetooth Range\u003c\/h4\u003e\n\u003cp\u003eIndoor maximum range up to 10 meters \/ 33 feet, outdoor maximum range up to 30 meters \/ 100 feet (depending on local conditions)\u003c\/p\u003e\n\n\u003ch4\u003eWi-Fi Range\u003c\/h4\u003e\n\u003cp\u003eIndoor maximum range up to 30 meters \/ 100 feet, outdoor maximum range up to 50 meters \/ 160 feet (depending on local conditions)\u003c\/p\u003e\n\n\u003ch4\u003eCertification Requirements\u003c\/h4\u003e\n\u003cul\u003e\n \u003cli\u003eUS: FCC\u003c\/li\u003e\n \u003cli\u003eEU: CE, ROHS\u003c\/li\u003e\n\u003c\/ul\u003e\n\n\u003ch4\u003eMain Function\u003c\/h4\u003e\n\u003cul\u003e\n \u003cli\u003e\n\u003cstrong\u003eButton Function:\u003c\/strong\u003e Controls on\/off of the output: controls the turning on and off of lights, sockets, etc.\u003c\/li\u003e\n \u003cli\u003e\n\u003cstrong\u003ePower Measurement:\u003c\/strong\u003e\n \u003cul\u003e\n \u003cli\u003eDisplays daily electricity consumption, total duration in the 'on' state, power, current, voltage, and total power from yesterday.\u003c\/li\u003e\n \u003cli\u003eShows total electricity consumption and usage duration.\u003c\/li\u003e\n \u003cli\u003eDisplays monthly electricity consumption with a data storage limit of 1 year.\u003c\/li\u003e\n \u003c\/ul\u003e\n \u003c\/li\u003e\n \u003cli\u003e\n\u003cstrong\u003eOverload Protection:\u003c\/strong\u003e Automatically disconnects output in case of overload.\u003c\/li\u003e\n \u003cli\u003e\n\u003cstrong\u003eOvertemperature Protection:\u003c\/strong\u003e Disconnects output immediately when exceeding 100°C.\u003c\/li\u003e\n\u003c\/ul\u003e\n\n\u003ch4\u003eSwitch Mode\u003c\/h4\u003e\n\u003cp\u003eCompatible with different switch types:\u003c\/p\u003e\n\u003col\u003e\n \u003cli\u003e\n\u003cstrong\u003eToggle Switch:\u003c\/strong\u003e A switch with distinct 'on' and 'off' positions, ideal for traditional light switches.\u003c\/li\u003e\n \u003cli\u003e\n\u003cstrong\u003eMomentary Switch:\u003c\/strong\u003e A spring-loaded switch that momentarily changes the relay state when pressed, commonly used for doorbells and access control systems.\u003c\/li\u003e\n \u003cli\u003e\n\u003cstrong\u003eDetached Switch:\u003c\/strong\u003e The physical wall switch does not affect the device, ideal for smart lights that need constant power, similar to ceiling light controls.\u003c\/li\u003e\n \u003cli\u003e\n\u003cstrong\u003eEdge Switch:\u003c\/strong\u003e Each press of the button toggles the state, independent of the previous position, ensuring the state changes with every press.\u003c\/li\u003e\n\u003c\/ol\u003e\n\n\u003ch4\u003eRoller Blind Mode\u003c\/h4\u003e\n\u003cp\u003eNot supported\u003c\/p\u003e\n\n\u003ch4\u003eGarage Door Mode\u003c\/h4\u003e\n\u003cp\u003eNot supported\u003c\/p\u003e\n\n\u003ch4\u003eMatter\u003c\/h4\u003e\n\u003cp\u003eYou can enter the Matter settings from the Relay Switch settings page to put the device into Matter setup mode and add it to the Home app. The Relay Switch itself is displayed as a switch in the Home app and can add Matter secondary devices.\u003c\/p\u003e","published_at":"2026-06-25T03:05:29+08:00","created_at":"2025-05-16T00:12:18+08:00","vendor":"SwitchBot","type":"","tags":["brand_SwitchBot","cat1_Electronics","cat2_Gadget \u0026 Accessories","cat3_Smart Home Devices","Streamcast Asia Pte Ltd_Streamcast Asia Pte Ltd","vend_add","Vendor_Stream Cast Asia"],"price":3000,"price_min":3000,"price_max":3000,"available":true,"price_varies":false,"compare_at_price":3900,"compare_at_price_min":3900,"compare_at_price_max":3900,"compare_at_price_varies":false,"variants":[{"id":41135566159957,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"SBT-W5502310","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"SwitchBot Relay Switch 1PM","public_title":null,"options":["Default Title"],"price":3000,"weight":500,"compare_at_price":3900,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/www.robinsons.com.sg\/cdn\/shop\/files\/220014714.png?v=1782327933","\/\/www.robinsons.com.sg\/cdn\/shop\/files\/220014715.png?v=1782327933","\/\/www.robinsons.com.sg\/cdn\/shop\/files\/220014716.png?v=1782327933"],"featured_image":"\/\/www.robinsons.com.sg\/cdn\/shop\/files\/220014714.png?v=1782327933","options":["Title"],"media":[{"alt":null,"id":28464896049237,"position":1,"preview_image":{"aspect_ratio":1.0,"height":800,"width":800,"src":"\/\/www.robinsons.com.sg\/cdn\/shop\/files\/220014714.png?v=1782327933"},"aspect_ratio":1.0,"height":800,"media_type":"image","src":"\/\/www.robinsons.com.sg\/cdn\/shop\/files\/220014714.png?v=1782327933","width":800},{"alt":null,"id":28464896082005,"position":2,"preview_image":{"aspect_ratio":1.0,"height":800,"width":800,"src":"\/\/www.robinsons.com.sg\/cdn\/shop\/files\/220014715.png?v=1782327933"},"aspect_ratio":1.0,"height":800,"media_type":"image","src":"\/\/www.robinsons.com.sg\/cdn\/shop\/files\/220014715.png?v=1782327933","width":800},{"alt":null,"id":28464896114773,"position":3,"preview_image":{"aspect_ratio":1.0,"height":800,"width":800,"src":"\/\/www.robinsons.com.sg\/cdn\/shop\/files\/220014716.png?v=1782327933"},"aspect_ratio":1.0,"height":800,"media_type":"image","src":"\/\/www.robinsons.com.sg\/cdn\/shop\/files\/220014716.png?v=1782327933","width":800}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"# Product Specifications\n\n\u003ch4\u003eDimensions (mm)\u003c\/h4\u003e\n\u003cp\u003e42 x 36 x 16±0.5 mm (1.6 x 1.4 x 0.6±0.02 in.)\u003c\/p\u003e\n\n\u003ch4\u003eProduct Weight\u003c\/h4\u003e\n\u003cp\u003e27 g (0.9 oz.)\u003c\/p\u003e\n\n\u003ch4\u003eMaterials\u003c\/h4\u003e\n\u003cp\u003ePC\u003c\/p\u003e\n\n\u003ch4\u003eParameter Information\u003c\/h4\u003e\n\u003cul\u003e\n \u003cli\u003e\n\u003cstrong\u003ePower Supply:\u003c\/strong\u003e AC Input: 100-240V 50\/60Hz\u003c\/li\u003e\n \u003cli\u003eDC Input: 24V-48V, 12V\u003c\/li\u003e\n \u003cli\u003e\n\u003cstrong\u003eOutput Current:\u003c\/strong\u003e Max AC Output Current: 16 A\u003c\/li\u003e\n \u003cli\u003eMax DC Output Current: 10 A\u003c\/li\u003e\n\u003c\/ul\u003e\n\n\u003ch4\u003ePacking List\u003c\/h4\u003e\n\u003cul\u003e\n \u003cli\u003e1 * Product\u003c\/li\u003e\n \u003cli\u003e1 * Manual\u003c\/li\u003e\n \u003cli\u003e1 * Warranty Card\u003c\/li\u003e\n\u003c\/ul\u003e\n\n\u003ch4\u003eConnection Method\u003c\/h4\u003e\n\u003cp\u003eWi-Fi+BLE\u003c\/p\u003e\n\n\u003ch4\u003eInstallation Method\u003c\/h4\u003e\n\u003cp\u003eEmbedded\u003c\/p\u003e\n\n\u003ch4\u003eBluetooth Range\u003c\/h4\u003e\n\u003cp\u003eIndoor maximum range up to 10 meters \/ 33 feet, outdoor maximum range up to 30 meters \/ 100 feet (depending on local conditions)\u003c\/p\u003e\n\n\u003ch4\u003eWi-Fi Range\u003c\/h4\u003e\n\u003cp\u003eIndoor maximum range up to 30 meters \/ 100 feet, outdoor maximum range up to 50 meters \/ 160 feet (depending on local conditions)\u003c\/p\u003e\n\n\u003ch4\u003eCertification Requirements\u003c\/h4\u003e\n\u003cul\u003e\n \u003cli\u003eUS: FCC\u003c\/li\u003e\n \u003cli\u003eEU: CE, ROHS\u003c\/li\u003e\n\u003c\/ul\u003e\n\n\u003ch4\u003eMain Function\u003c\/h4\u003e\n\u003cul\u003e\n \u003cli\u003e\n\u003cstrong\u003eButton Function:\u003c\/strong\u003e Controls on\/off of the output: controls the turning on and off of lights, sockets, etc.\u003c\/li\u003e\n \u003cli\u003e\n\u003cstrong\u003ePower Measurement:\u003c\/strong\u003e\n \u003cul\u003e\n \u003cli\u003eDisplays daily electricity consumption, total duration in the 'on' state, power, current, voltage, and total power from yesterday.\u003c\/li\u003e\n \u003cli\u003eShows total electricity consumption and usage duration.\u003c\/li\u003e\n \u003cli\u003eDisplays monthly electricity consumption with a data storage limit of 1 year.\u003c\/li\u003e\n \u003c\/ul\u003e\n \u003c\/li\u003e\n \u003cli\u003e\n\u003cstrong\u003eOverload Protection:\u003c\/strong\u003e Automatically disconnects output in case of overload.\u003c\/li\u003e\n \u003cli\u003e\n\u003cstrong\u003eOvertemperature Protection:\u003c\/strong\u003e Disconnects output immediately when exceeding 100°C.\u003c\/li\u003e\n\u003c\/ul\u003e\n\n\u003ch4\u003eSwitch Mode\u003c\/h4\u003e\n\u003cp\u003eCompatible with different switch types:\u003c\/p\u003e\n\u003col\u003e\n \u003cli\u003e\n\u003cstrong\u003eToggle Switch:\u003c\/strong\u003e A switch with distinct 'on' and 'off' positions, ideal for traditional light switches.\u003c\/li\u003e\n \u003cli\u003e\n\u003cstrong\u003eMomentary Switch:\u003c\/strong\u003e A spring-loaded switch that momentarily changes the relay state when pressed, commonly used for doorbells and access control systems.\u003c\/li\u003e\n \u003cli\u003e\n\u003cstrong\u003eDetached Switch:\u003c\/strong\u003e The physical wall switch does not affect the device, ideal for smart lights that need constant power, similar to ceiling light controls.\u003c\/li\u003e\n \u003cli\u003e\n\u003cstrong\u003eEdge Switch:\u003c\/strong\u003e Each press of the button toggles the state, independent of the previous position, ensuring the state changes with every press.\u003c\/li\u003e\n\u003c\/ol\u003e\n\n\u003ch4\u003eRoller Blind Mode\u003c\/h4\u003e\n\u003cp\u003eNot supported\u003c\/p\u003e\n\n\u003ch4\u003eGarage Door Mode\u003c\/h4\u003e\n\u003cp\u003eNot supported\u003c\/p\u003e\n\n\u003ch4\u003eMatter\u003c\/h4\u003e\n\u003cp\u003eYou can enter the Matter settings from the Relay Switch settings page to put the device into Matter setup mode and add it to the Home app. The Relay Switch itself is displayed as a switch in the Home app and can add Matter secondary devices.\u003c\/p\u003e"}
Details
# Product Specifications
Dimensions (mm)
42 x 36 x 16±0.5 mm (1.6 x 1.4 x 0.6±0.02 in.)
Product Weight
27 g (0.9 oz.)
Materials
PC
Parameter Information
- Power Supply: AC Input: 100-240V 50/60Hz
- DC Input: 24V-48V, 12V
- Output Current: Max AC Output Current: 16 A
- Max DC Output Current: 10 A
Packing List
- 1 * Product
- 1 * Manual
- 1 * Warranty Card
Connection Method
Wi-Fi+BLE
Installation Method
Embedded
Bluetooth Range
Indoor maximum range up to 10 meters / 33 feet, outdoor maximum range up to 30 meters / 100 feet (depending on local conditions)
Wi-Fi Range
Indoor maximum range up to 30 meters / 100 feet, outdoor maximum range up to 50 meters / 160 feet (depending on local conditions)
Certification Requirements
- US: FCC
- EU: CE, ROHS
Main Function
- Button Function: Controls on/off of the output: controls the turning on and off of lights, sockets, etc.
-

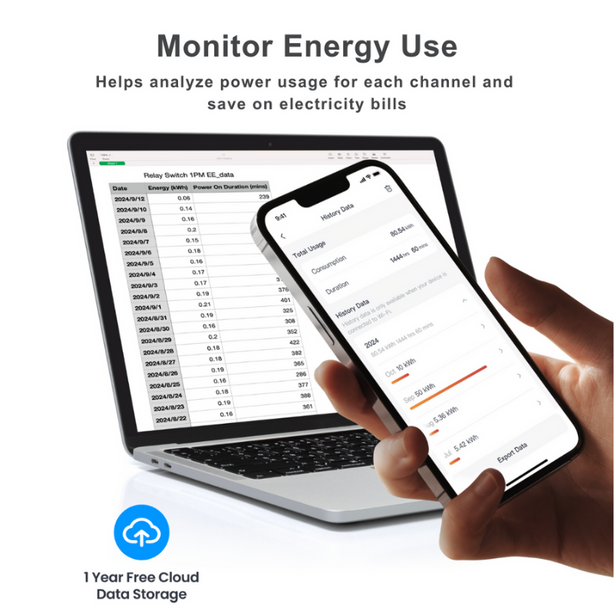

Power Measurement:
- Displays daily electricity consumption, total duration in the 'on' state, power, current, voltage, and total power from yesterday.
- Shows total electricity consumption and usage duration.
- Displays monthly electricity consumption with a data storage limit of 1 year.
- Overload Protection: Automatically disconnects output in case of overload.
- Overtemperature Protection: Disconnects output immediately when exceeding 100°C.
Switch Mode
Compatible with different switch types:
- Toggle Switch: A switch with distinct 'on' and 'off' positions, ideal for traditional light switches.
- Momentary Switch: A spring-loaded switch that momentarily changes the relay state when pressed, commonly used for doorbells and access control systems.
- Detached Switch: The physical wall switch does not affect the device, ideal for smart lights that need constant power, similar to ceiling light controls.
- Edge Switch: Each press of the button toggles the state, independent of the previous position, ensuring the state changes with every press.
Roller Blind Mode
Not supported
Garage Door Mode
Not supported
Matter
You can enter the Matter settings from the Relay Switch settings page to put the device into Matter setup mode and add it to the Home app. The Relay Switch itself is displayed as a switch in the Home app and can add Matter secondary devices.
# Product Specifications
Dimensions (mm)
42 x 36 x 16±0.5 mm (1.6 x 1.4 x 0.6±0.02 in.)
Product Weight
27 g (0.9 oz.)
Materials
PC
Parameter Information
- Power Supply: AC Input: 100-240V 50/60Hz
- DC Input: 24V-48V, 12V
- Output Current: Max AC Output Current: 16 A
- Max DC Output Current: 10 A
Packing List
- 1 * Product
- 1 * Manual
- 1 * Warranty Card
Connection Method
Wi-Fi+BLE
Installation Method
Embedded
Bluetooth Range
Indoor maximum range up to 10 meters / 33 feet, outdoor maximum range up to 30 meters / 100 feet (depending on local conditions)
Wi-Fi Range
Indoor maximum range up to 30 meters / 100 feet, outdoor maximum range up to 50 meters / 160 feet (depending on local conditions)
Certification Requirements
- US: FCC
- EU: CE, ROHS
Main Function
- Button Function: Controls on/off of the output: controls the turning on and off of lights, sockets, etc.
-
Power Measurement:
- Displays daily electricity consumption, total duration in the 'on' state, power, current, voltage, and total power from yesterday.
- Shows total electricity consumption and usage duration.
- Displays monthly electricity consumption with a data storage limit of 1 year.
- Overload Protection: Automatically disconnects output in case of overload.
- Overtemperature Protection: Disconnects output immediately when exceeding 100°C.
Switch Mode
Compatible with different switch types:
- Toggle Switch: A switch with distinct 'on' and 'off' positions, ideal for traditional light switches.
- Momentary Switch: A spring-loaded switch that momentarily changes the relay state when pressed, commonly used for doorbells and access control systems.
- Detached Switch: The physical wall switch does not affect the device, ideal for smart lights that need constant power, similar to ceiling light controls.
- Edge Switch: Each press of the button toggles the state, independent of the previous position, ensuring the state changes with every press.
Roller Blind Mode
Not supported
Garage Door Mode
Not supported
Matter
You can enter the Matter settings from the Relay Switch settings page to put the device into Matter setup mode and add it to the Home app. The Relay Switch itself is displayed as a switch in the Home app and can add Matter secondary devices.
